BeatBox Anthology 2 features a Multi Out preset which allows you to send each drum element over multiple outputs in UVI Workstation or Falcon as follows:
- Main Out > Effects only (i.e. wet signals)
- Out 2 > BD (Bass Drum)
- Out 3 > SD1 (Snare Drum)
- Out 4 > SD2 (Snare Drum)
- Out 5 > Clap
- Out 6 > HH1 (Closed Hi Hat)
- Out 7 > HH2 (Closed Hi Hat)
- Out 8 > HHO (Open Hi Hat)
- Out 9 > CY1 (Cymbal 1)
- Out 10 > CY2 (Cymbal 2)
- Out 11 > PT1 (Tom Percs 1)
- Out 12 > PT2 (Tom Percs 2)
- Out 13 > PT3 (Tom Percs 3)
You can read the BeatBox Anthology 2 User Manual for more information.
In this example, we will be using Ableton Live to set up BeatBox Anthology 2 with multiple outputs via 12 separate tracks (1 element per return track):
- Create a MIDI track and load UVI Workstation

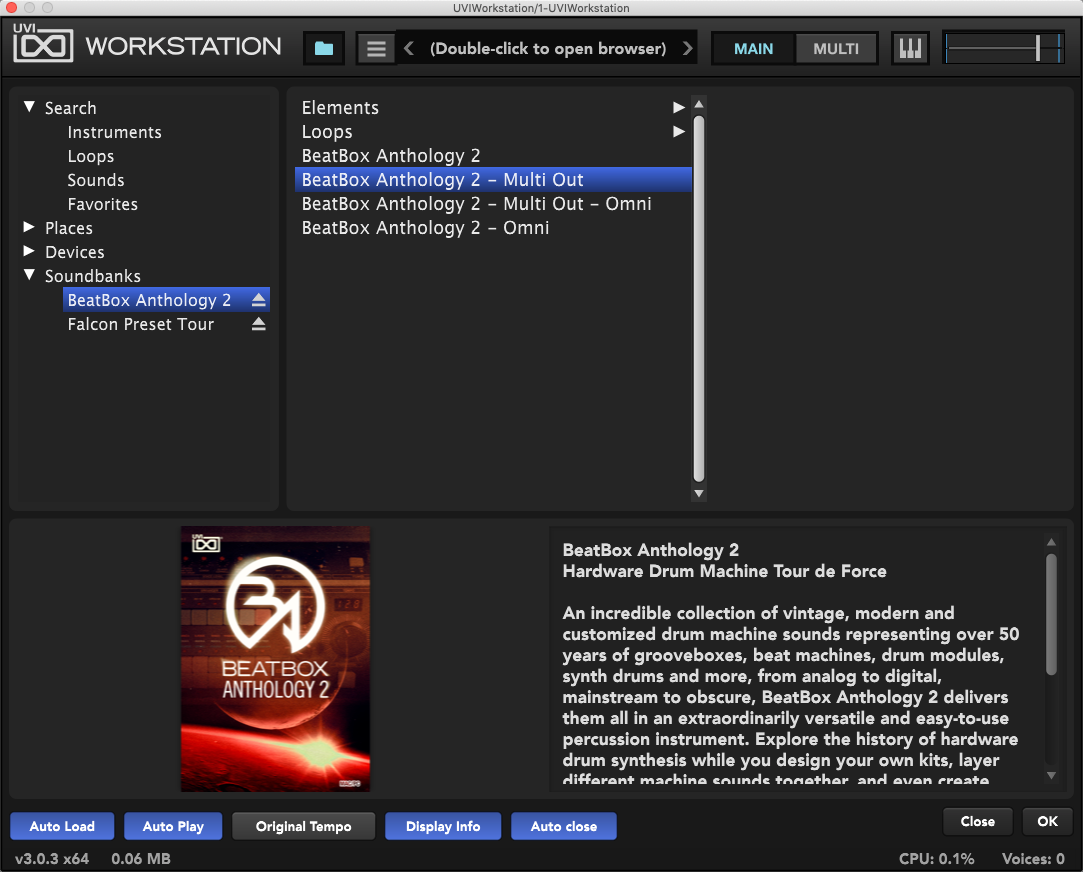

- Load the preset BeatBox Anthology 2 - Multi Out in UVI Workstation

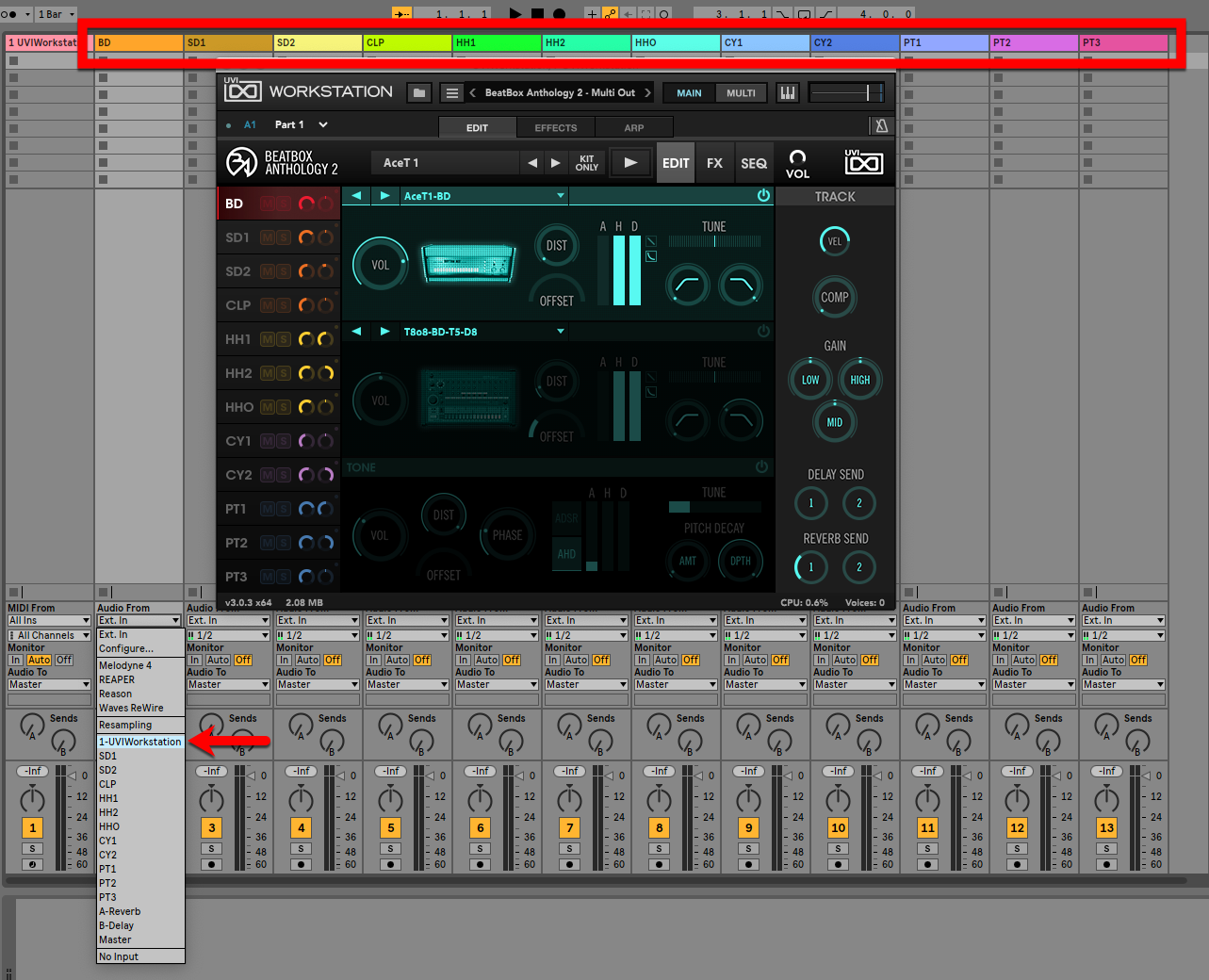

- Create 12 Audio Tracks in your session, name them accordingly to the list above (BD, SD, HH1, and so on), then select UVIWorkstation in the Audio From drop-down menu for each track

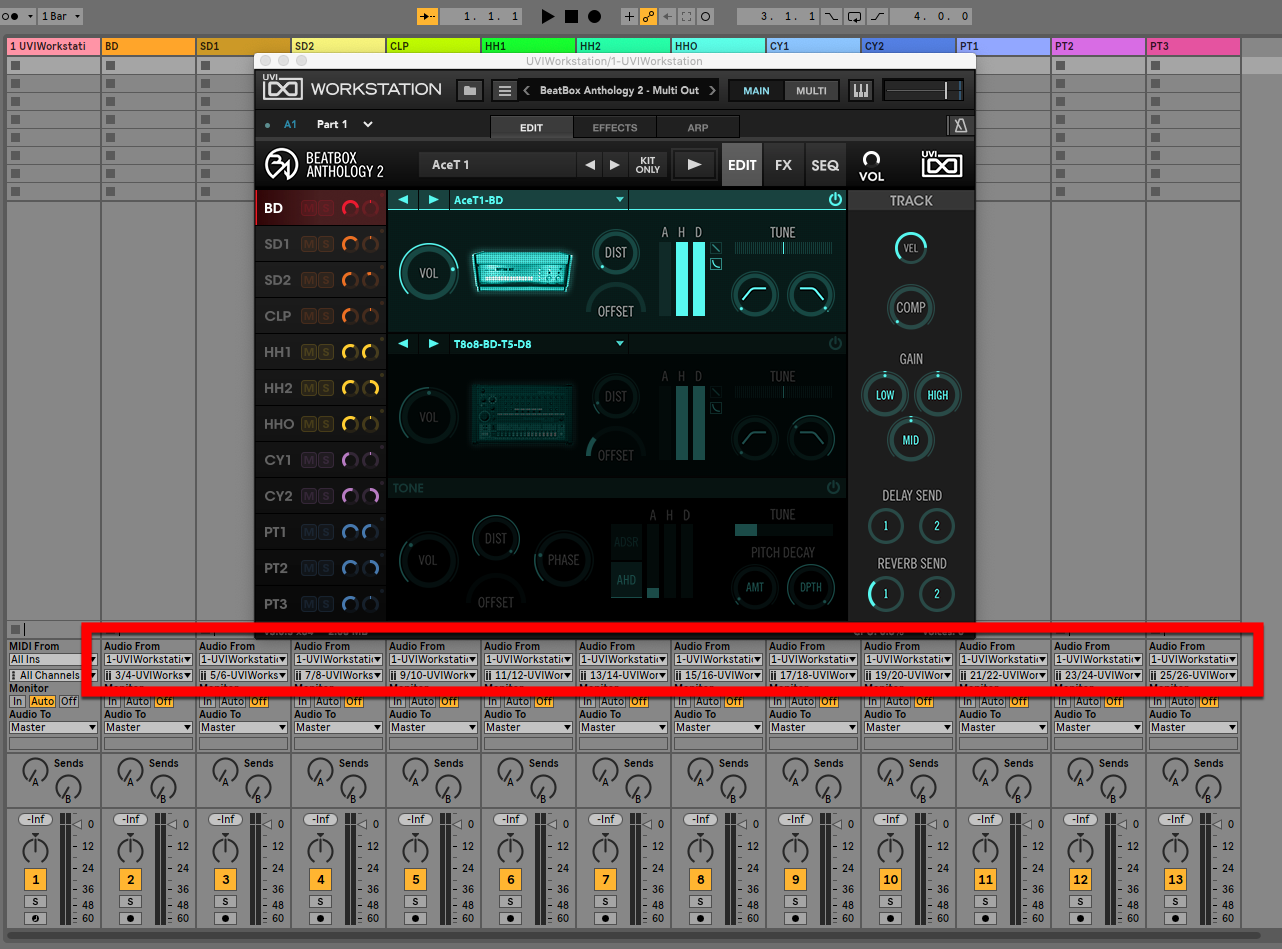

- For each track, also select the following via the second Audio From drop-down menu:
- BD > 3/4-UVIWorkstation
- SD1 > 5/6-UVIWorkstation
- SD2 > 7/8-UVIWorkstation
- Clap > 9/10-UVIWorkstation
- HH1 > 11/12-UVIWorkstation
- HH2 > 13/14-UVIWorkstation
- HHO > 15/16-UVIWorkstation
- CY1 > 17/18-UVIWorkstation
- CY2 > 19/20-UVIWorkstation
- PT1 > 21/22-UVIWorkstation
- PT2 > 23/24-UVIWorkstation
- PT3 > 25/26-UVIWorkstation
You can now use your mixing tools to apply treatment to each drum element separately in Ableton Live.
